Vortex steam flow meters & monitoring

Steam systems need accurate measurement to control energy and performance. i-Kcal supplies vortex flow meters and steam monitoring to reduce losses and improve efficiency.

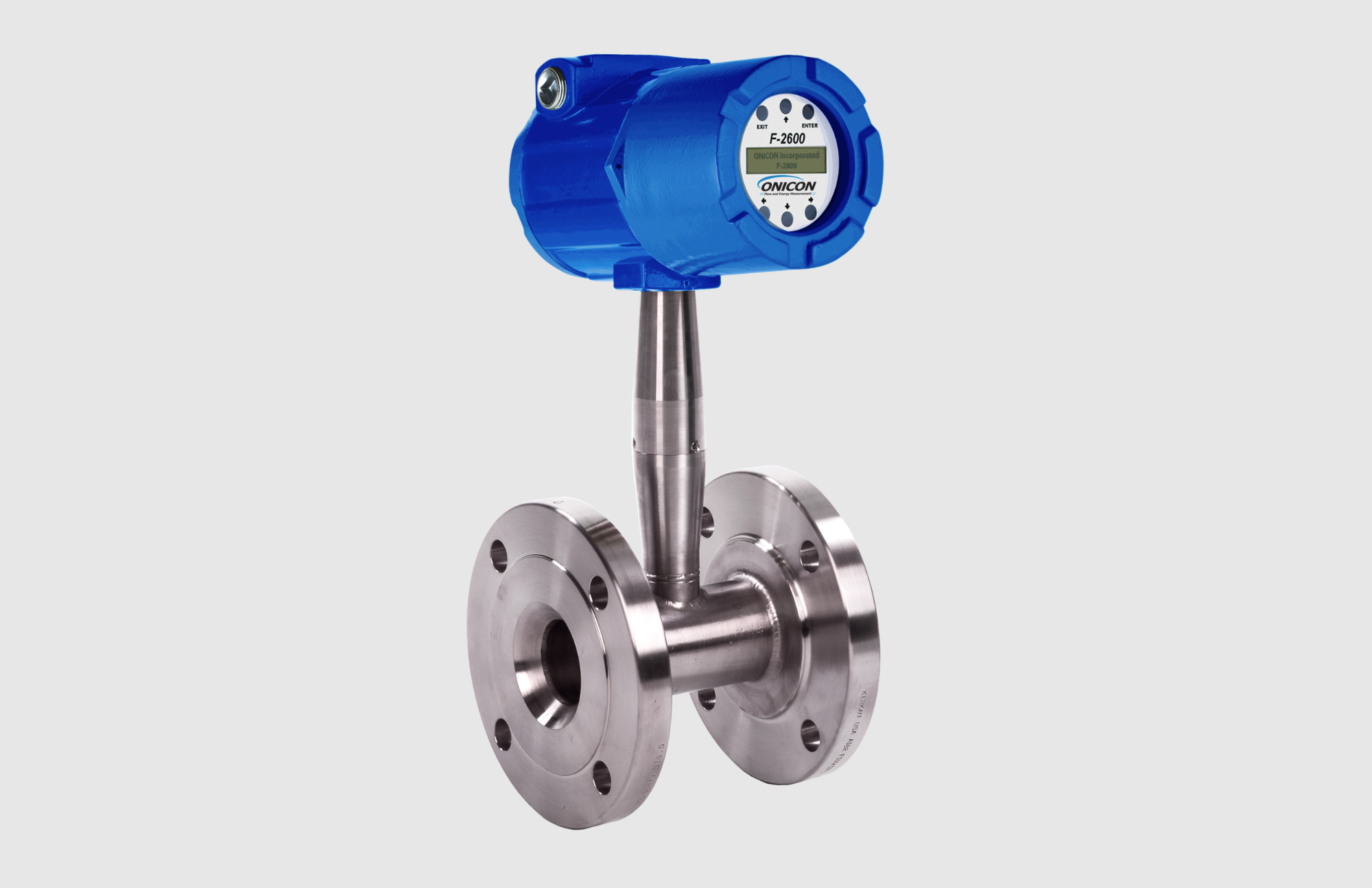

Flanged vortex flow meter with blue transmitter head
  • 2 m/sMinimum flow (vortex, DN40 and up)

Exploded view

The vortex flow meter, taken apart

Our vortex flow meter measures down to a minimum flow velocity of 2 m/s (DN40 and up), has integral mass-flow calculation, strong anti-vibration performance, and Bluetooth operation with remote diagnosis.

  • Steam
Illustration, traced from the manufacturer’s drawing.
  1. Converter head Integral mass-flow calculation; Bluetooth operation and remote diagnosis.
  2. Stem Carries the sensor’s signal up to the converter head.
  3. Sensor Strong anti-vibration performance.
  4. Bluff body Vortices break away from each side of it in turn.
  5. Meter body Steam / gas measurement.
  6. Flanges Bolt the meter into the steam line.
Skip to energy control

Energy control

Precise steam measurement for energy control

  • Real-time flow monitoring

  • Reduced energy losses

  • Improved system performance

Illustration: steam flow meters on the boiler main and on each loop.

How it works

Vortices, counted

Vortex flow meter · steam / gas measurement

Skip to the meters
  1. Flow

    Steam flows down the bore and meets the bluff body.

  2. Shedding

    Vortices break away from each side of the bluff body in turn.

  3. Vortex street

    The faster the steam flows, the more vortices it sheds each second.

  4. Sensor

    The sensor counts every vortex; the converter head turns the count into mass flow.

    Integral mass-flow calculation.

Illustration: the bore seen from above, after the manufacturer’s measuring-principle picture.

Steam metering, in our free Thermal Academy

Our solutions

Measurement technologies for every flow

Advanced measurement technologies designed for optimal performance.

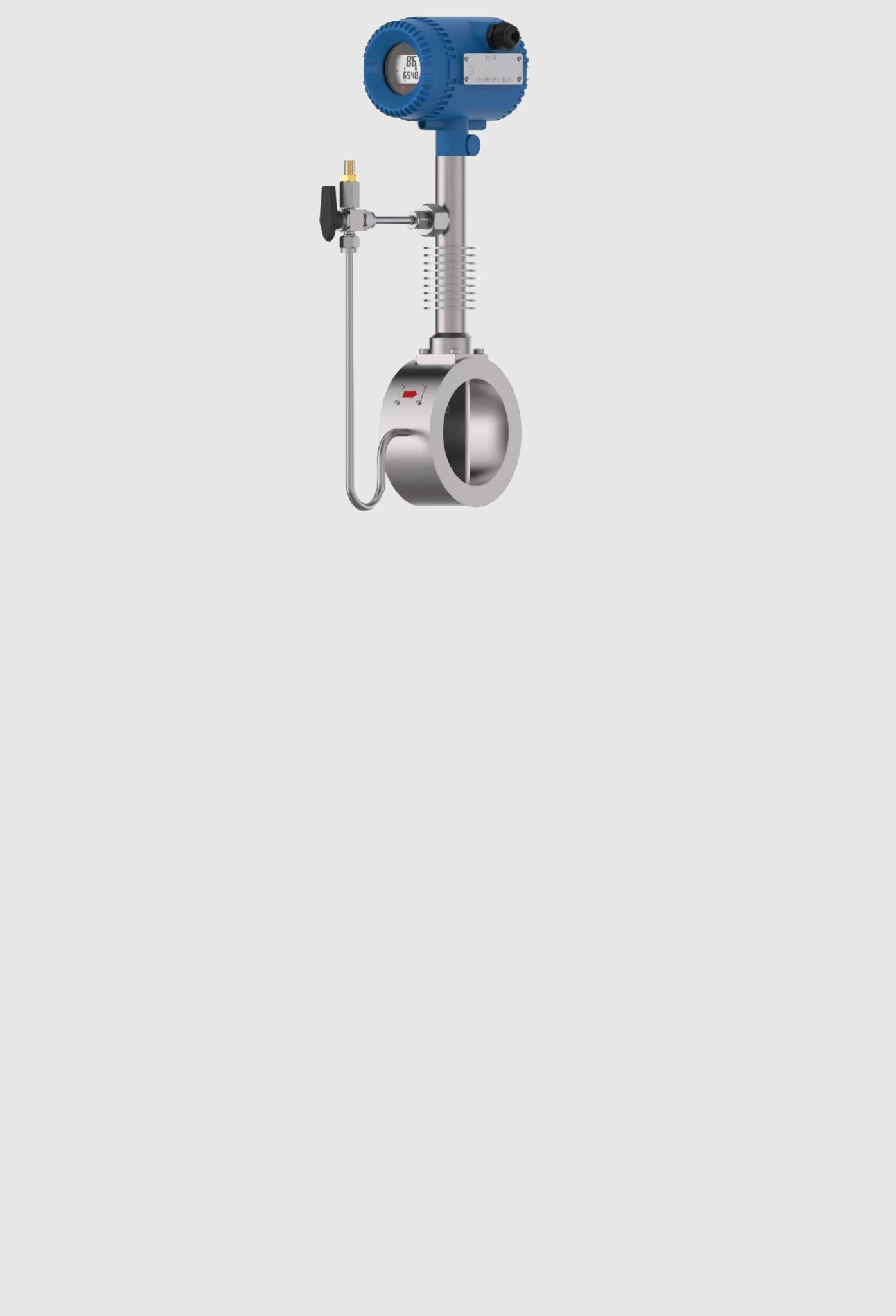

  • Wafer-type vortex flow meter with transmitter head
    Steam / gas measurement

    Vortex flow meter

    • 2 m/s minimum flow (DN40 and up)
    • Strong anti-vibration performance
    • Integral mass-flow calculation
    • Bluetooth operation and remote diagnosis

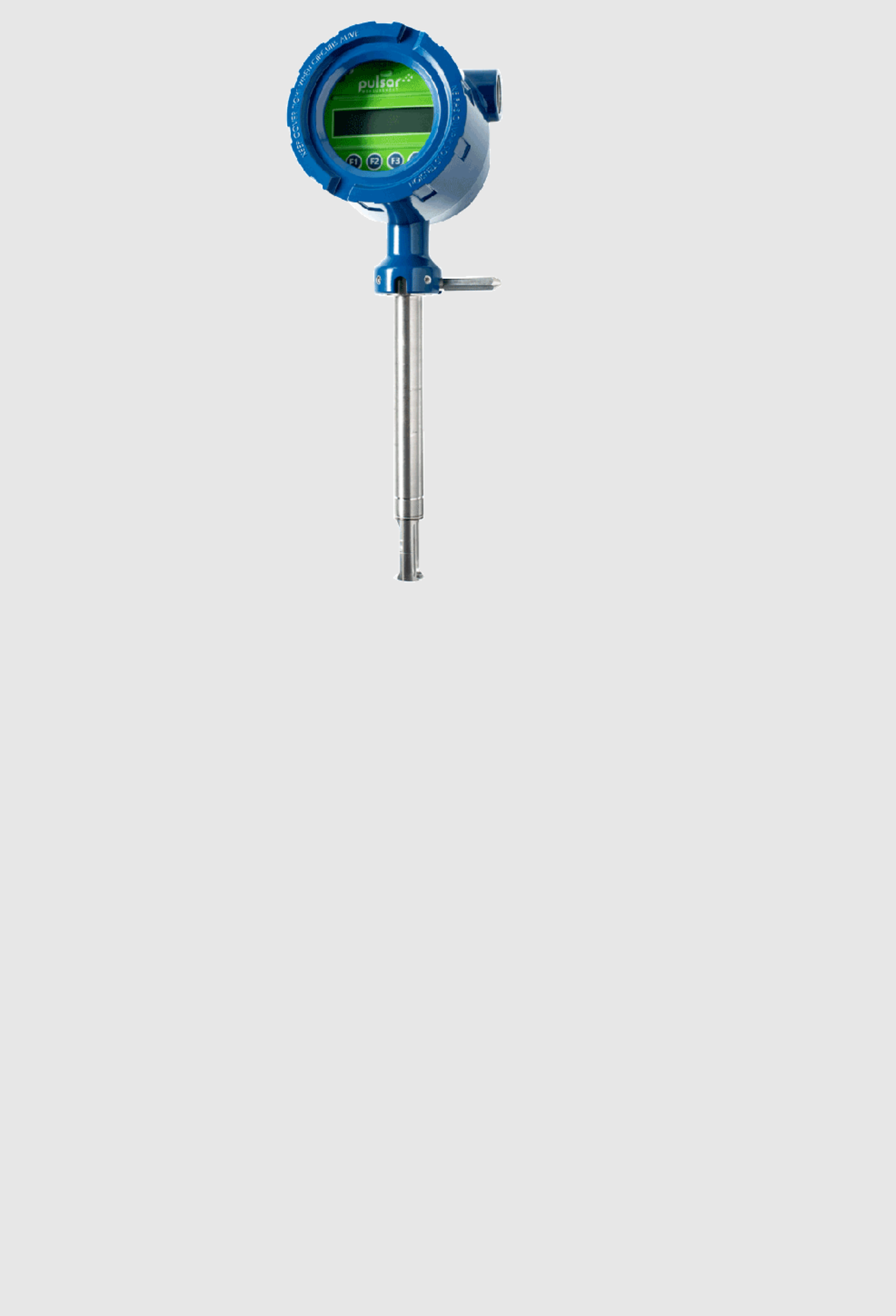

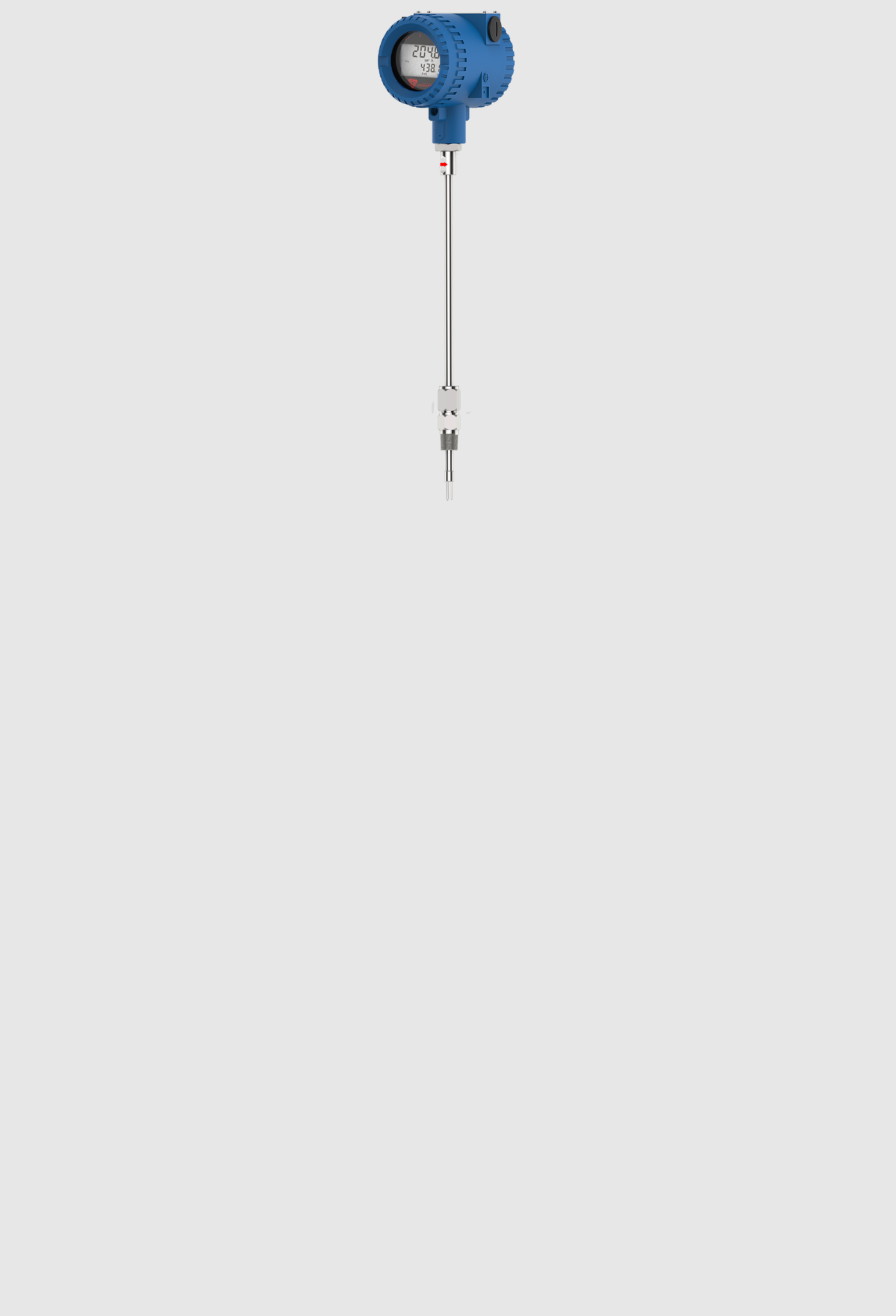

  • Insertion-type thermal mass flow meter
    Gas flow measurement

    Thermal mass flow meter

    • Very sensitive to small flows
    • Direct normal / standard / mass flow measurement
    • CHC method — no zero-offset problem, more stable measurement
    • Insertion mounting; hot-tap installation available, easy to install

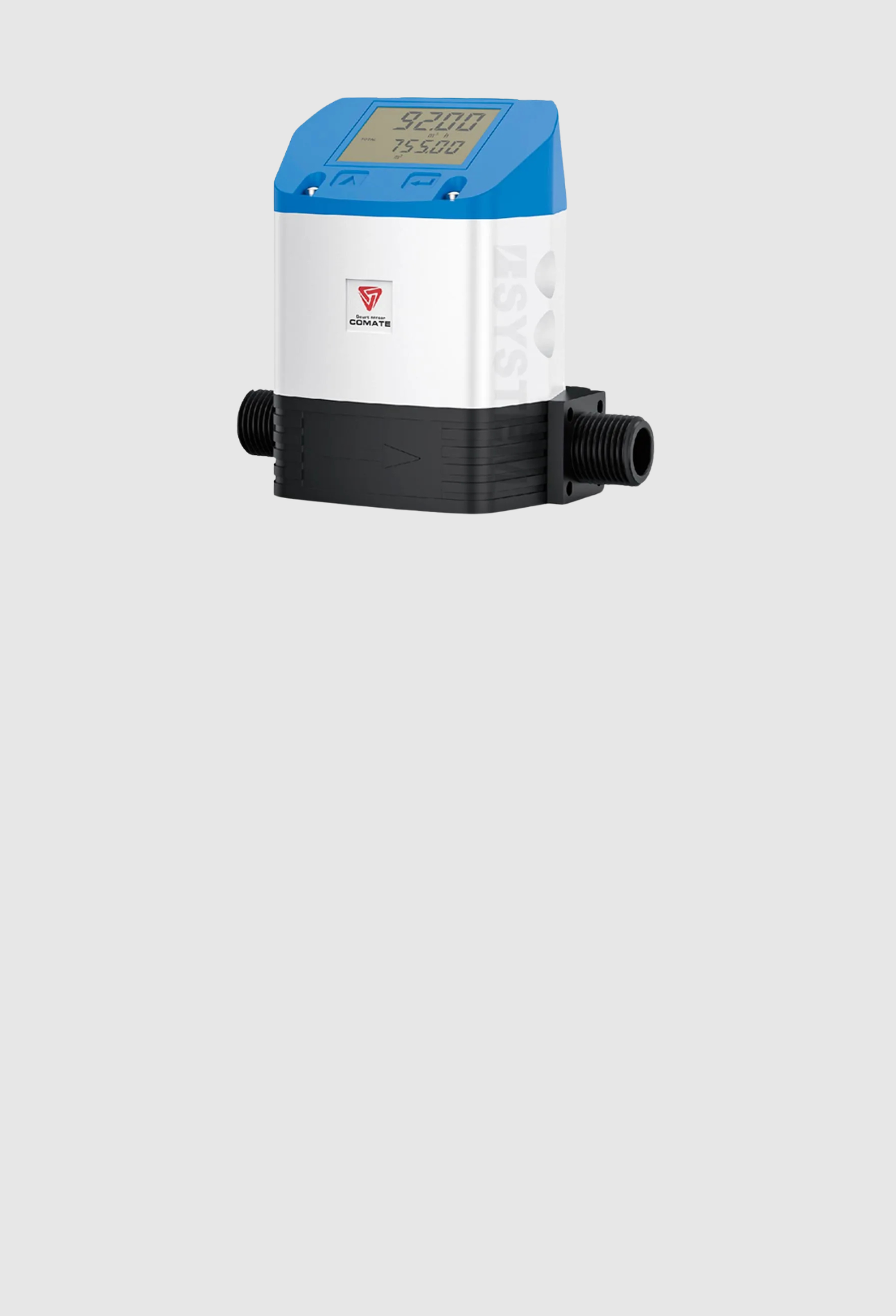

  • Compact micro flow meter with digital display
    Low-flow applications

    Micro flow meter

    • High sensitivity and precision
    • Compact design
    • Reliable

Benefits

Why it matters

ItemEffectBenefit
01ReduceSteam wastage
02ImproveEfficiency
03StableProcess
04LowerCost
Flanged vortex flow meter for steam

Smart sensors & monitoring

Real-time tracking and analytics

Real-time tracking and analytics for comprehensive system oversight.

  1. Real-time data collection

  2. Advanced analytics dashboard

  3. Remote monitoring capabilities

  4. Helps improve overall plant reliability

  5. Supports better control, visibility and decision-making

Where it is used

Across process industries

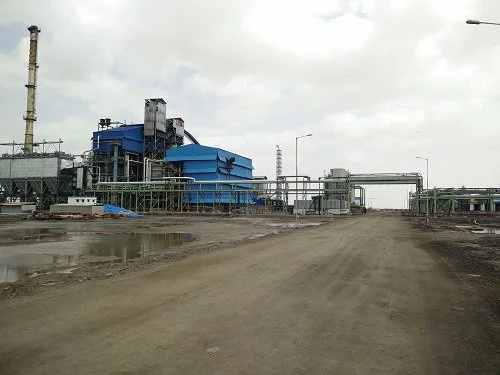

Suited to chemical, corrugator, dairy, paper and textile plants.

FAQ

Steam flow meter questions

What does a vortex flow meter measure?

Steam and gas flow. Our vortex flow meter measures down to a minimum flow velocity of 2 m/s (DN40 and up), has integral mass-flow calculation, strong anti-vibration performance, and Bluetooth operation with remote diagnosis.

Which meter should I use for gas?

For gas, a thermal mass flow meter is very sensitive to small flows and measures normal, standard or mass flow directly. It is insertion-mounted, with hot-tap installation available. For very low flows, a compact micro flow meter offers high sensitivity and precision.

Can steam flow be monitored remotely?

Yes. Smart sensors and monitoring provide real-time data collection, an advanced analytics dashboard and remote monitoring capabilities.

Which industries use these meters?

They are used across chemical, corrugator, dairy, paper and textile plants.

Do you know where your steam goes?

Tell us your line sizes, pressures and what you want to measure. We will recommend the right flow meter and monitoring set-up for your plant.
