Beyond Control Valves: Drum Dryers Save Energy with Steam Jet Ejectors

On textile drum dryers a Jetomat replaces the control valve and the drum traps: ~15% less steam on a one-row dryer, ~20% on a three-row line (Baelz references).

A textile processing line with fabric running over rollers
On this page
  1. Why Control Valves Waste Energy
  2. How Jetomat Works
  3. What the ejector principle means
  4. Real-World Textile Industry Results
  5. Results:
  6. Key Benefits of Jetomat in Textile Dryers
  7. Why It Matters
  8. Ready to see what Jetomat can do for your plant?

Textile manufacturing consumes huge amounts of steam in washing, dyeing & drying. Traditional control valves & steam traps often limit efficiency — wasting live steam through trap bypasses, leaking traps & recurring maintenance. Modern patented equipment like Baelz Jetomat® steam jet ejectors offer a smarter alternative. By combining an advanced variable nozzle with a simple Venturi principle, Jetomat works as a thermocompressor that reuses waste steam & improves throughput.

Why Control Valves Waste Energy

Conventional control valves simply throttle steam down to the required pressure. In the process, energy is lost & high-temperature condensate must be dumped through traps.
Over time, plants see thicker condensate films on dryer drums, uneven heating & wasted flash steam venting to atmosphere.

With valves & traps, the steam & condensate loop is inefficient: you burn fuel to make high-pressure steam, only to throw away part of it as flash.

How Jetomat Works

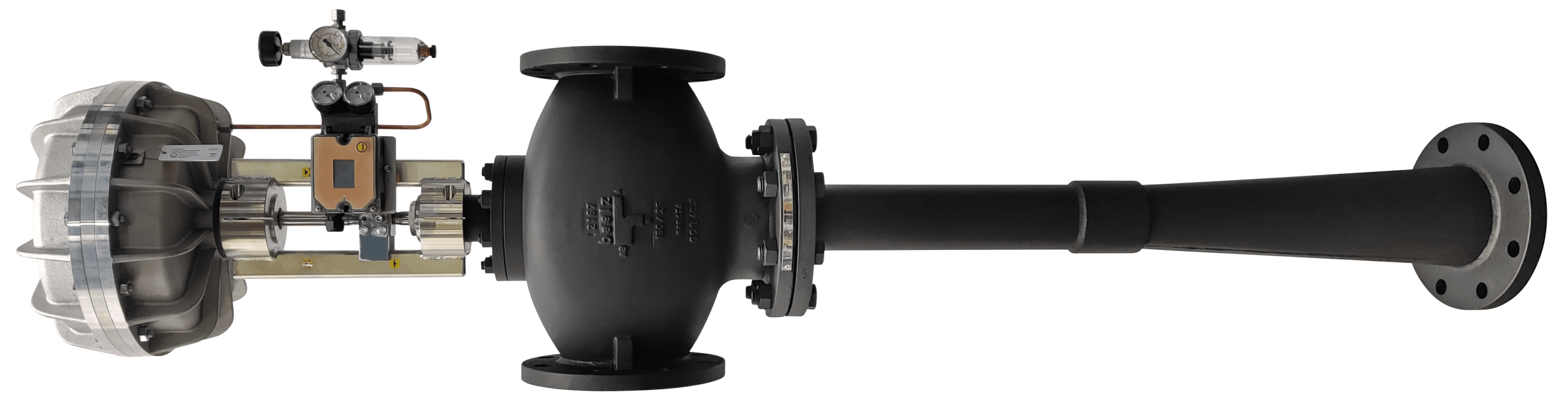

Jetomat is essentially a compact thermal vapour recompressor that recovers heat. Its nozzle geometry accelerates high-pressure motive steam into a jet stream. This creates suction, pulling in condensate from drum dryers instead of relying on gravity, like drinking soda with a straw.

The two flows mix inside the ejector body & the diffuser converts velocity back into usable pressure. The outcome: instead of losing energy, Jetomat delivers a stable supply of mixed steam at the right pressure.

What the ejector principle means

  • No wasted live steam — recompressed back into the steam dryer circuit.

  • Continuous recovery of condensate & flash steam, with no reliance on multiple traps or bypass.

  • Stable dryer skin temperature, ensuring consistent drying conditions.

In short, it’s a self-regulating steam compressor for your dryers — simple, robust, & maintenance-light.

Real-World Textile Industry Results

One textile plant swapped the valves on its drum dryers for Jetomat thermocompressors.
The stage had three rows of 12 drum dryers, each row on a control valve.

  • BEFORE: 5.5 bar steam throttled to 3 bar, with each drum fitted with a trap.

  • AFTER: Jetomat running at 5.5 bar motive steam, entraining low-pressure return steam at 1.5 bar, delivering 2 bar outlet pressure.

Results:

Steam use fell by about 20% (the case study).

  • Drum traps were eliminated completely.

  • Heat distribution improved: uniform surface temperature within 1°C vs a 15°C spread with valves.

  • Drying speed increased, enabling higher throughput with the same boiler.

In another single-row dryer case, the retrofit delivered ~15% steam savings & removed all five traps.

Key Benefits of Jetomat in Textile Dryers

Energy savings: Typical savings of 15–20% steam consumption per dryer.

  • No steam separator needed: By recompressing flash steam, Jetomat reduces water hammer risk & simplifies the steam & condensate system.

  • Flash steam recovery: Captures waste steam & puts it back to work, reducing boiler load & fuel bills.

  • Improved production speed: More uniform drying temperatures mean fabrics come out evenly dried, & better drying quality.

  • Simpler heating: Jetomat replaces control valves, multiple traps, & a vent line with a single, robust ejector.

Why It Matters

Energy is one of the largest costs in textile production. By installing Jetomat, mills not only cut fuel bills but also modernise their steam & condensate infrastructure with a reliable thermocompressor. Unlike complex valves or pumps, Baelz ejectors give reliable, automated production — meaning less downtime & fewer maintenance headaches.

Conclusion

Jetomat steam jet ejectors prove that efficiency & throughput don’t have to be a trade-off. By fitting a thermocompressor to your dryer line, you can save about 15–20% of the steam on the dryers, eliminate steam trap maintenance, & achieve faster, more consistent drying.
